Light Propagation

A key factor for understanding light-tissue interaction – be it for imaging, therapy or surgery – is taking into account the diffusive propagation of light inside strongly scattering biological tissues.

Our research is directed along following branches:

  • Simulation of light propagation: For simple geometries and optical properties fulfilling certain conditions, analytic solutions exist for describing the time-dependent spatial distribution of light intensity. In many cases, however, the underlying models are not able to describe reality in a satisfactory way. Therefore, we have developed a general-purpose Monte Carlo simulation software to model light propagation in soft condensed matter such as biological tissues. This software is composed of a user interface in IDL/GDL combined with a stand-alone photon path generation routine implemented in C++, and was rigorously validated by comparison with experimental results.
  • We are developing experimental setups for the accurate optical characterization of highly scattering media based on our light propagation models.
  • We investigate polarimetric imaging and fluorescence life time imaging in strongly scattering media, with the prospects of developing novel diagnostic techniques.
  • Mucociliary clearance is a vital process, and dysfunction results in severe disease. Whereas the anatomical structure and function of the underlying actors – the cilia – is well known, the way how cilia coordinate to promote mucociliary transport is still a topic of debate. We focus on the investigation of mucociliary transport in living tissue samples using microscopic techniques on one hand, and on the development of models of a self-organising epithelium on the other hand.
The spatial Perrin-Mueller matrix serves as a compact way of characterizing the polarization altering properties of a given sample. This figure shows the Perrin_Mueller matrix obtained from various polystyrene sphere suspensions.

Polarimetry is emerging as a promising, minimally invasive diagnostics tool.
The interaction of polarized light with matter often reveals features that are invisible to ordinary imaging techniques / diffuse optics. We have developed a versatile polarimetric microscope, that can measure with high speed cross- and auto-correlations
between arbitrarily polarized incident and backscattered light. This microscope has undegone a rigorous calibration process by performing measurements on well-characterized colloidal suspensions and comparing the results with Monte Carlo simulations.

Long term goals include differentiating tumorous from healthy tissues (in collaboration with the Neurosurgical Institute of the Inselspital Bern), diagnosing the severeness of burn injuries, as well as studying the fundamentals of polarized light propagation in random media, whereby more theoretical work is carried out.

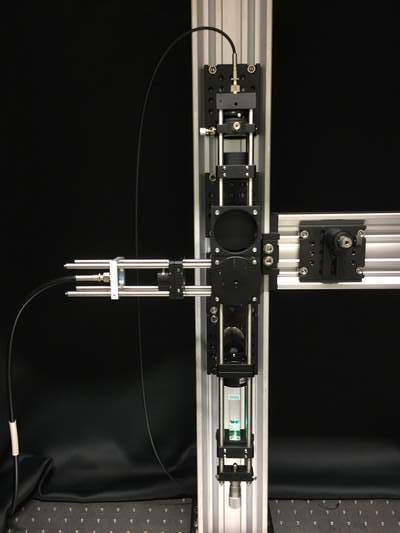

Photograph of the current confocal microscope.

We have built a confocal laser scanning microscope to perform fluorescence lifetime imaging to work on tissue diagnostics. The setup uses time-correlated single photon counting (TCSPC), together with a tunable picosecond pulsed excitation source.

Ongoing investigations include a collaboration with the Department of Chemistry and Biochemistry at the University of Bern, whereby the interactions of photosensitizers with their micro-environments are studied in the frame of photodynamic therapy.

Columnar respiratory epithelium from a trachea of a BIBD-infected boa constrictor. Mainly ciliated and secretory cells constitute the top layer of the tissue. Within several cells amphophilic, round to oval, 2–5_m in diameter, perinuclear inclusion bodies are seen (white arrow).

Cilia are roughly 10_m long hair-like protrusions of the cell membrane. In the airways of higher organisms, their coordinated oscillatory beating movements causes directed motion of the mucosal fluid, cleaning the airways from adhering inhaled particles and harmful substances.



It is obvious that in order to achieve efficient directed transport, the ciliary motions must be, at least locally coordinated. Immotile cilia or lack of coordination are made responsible for different severe diseases, such as primary ciliary dyskinesia, therefore there is a demand for reliable diagnostic techniques. The key to every diagnosis is a sound knowledge of the healthy system. To achieve this goal, we focus on two complementary lines of action:



  • We have developed a setup for the investigation and characterization of various aspects and parameters of mucociliary transport in an inter-species comparative study involving cow, sheep, pig, rabbit and turkey. In a collaboration with the clinic for zoo animals, exotic pets and wildlife (Univ. of Zurich), we have investigated the mucociliary clearance in snakes infected with boid inclusion body disease (BIBD). In BIBD-a_ected snakes amphophilic perinuclear inclusion bodies are found in the respiratory epithelium (see Figure), whose consequence to the mucociliary function has not been evaluated before. As pneumonia is commonly seen in BIBD-infected snakes, BIBD is suspected to impair mucociliary clearance in the respiratory tract.

  • We have developed a theoretical model for explaining the self-organization that leads to mucociliary transport, based on interpreting ciliated cells as oscillating boolean actuators and their interactions as logical functions. Interactions between cells are triggered by virtual mucus lumps, which establish the network’s topology. This simple model exhibits the emergence of spatio-temporal patterns, that are accompanied by self-organized transport. The co-evolution of the network’s state and its topology allows to understand the mucociliary dynamics in the context of adaptive networks. Based on the study of a range of various model parameters, our main conclusion is that unciliated cells may improve the robustness of the spatio-temporal organization on ciliated epithelia, as they introduce a degree of modularity into the network’s topology. This provides a reasonable understanding of the observed patch-work character in the tracheal mucociliary system, which may be the expression of a modular mucocilairy network.

We have developed a general purpose Monte Carlo simulation package based on the concepts outlined by Rička et al. in “Optical-Thermal Response of Laser-Irradiated Tissue” (Springer, 2011) and initially intended to model light propagation in soft condensed matter such as biological tissues, but whose scope is far from being restricted to radiative transfer in tissues. The software is playfully named jaMCp3: just another Monte Carlo program for polarized photon propagation and composed of a user interface in IDL/GDL and a stand-alone photon path generation routine implemented in C++. Besides the Mie scattering model, the program includes a novel scattering model (the “polarized version of the generalized Henyey-Greenstein” scattering law) containing a structure factor parameter. The latter is particularly well-suited to describe light propagation in soft condensed matter such as biological tissue. Moreover, the simulations are conducted in a voxel space, where custom and complex geometrical structures can easily be generated. These also allow for the treatment of Fresnel reflection/refraction processes.

JaMCp3 has previously been subject to preliminary writings in its embryonic stages: “Simulating light propagation: towards realistic tissue models” (SPIE proceeding, 2011) and “Polarized Light Propagation in Biological Tissue: Towards Realistic Modeling” (Doctoral thesis, 2011). Yet, over the past years, jaMCp3 underwent rigorous testing stages (see references below). Certainly, the validation of such a MC program is a prime challenge, as quantitative comparisons, either with experiments or other simulation programs, are difficult to perform, and furthermore, the modeling of complex geometrical structures is bound to induce various numerical singularities, which might not be apparent at first glance. We are currently preparing a manuscript that details our program's main features and gives examples of its diverse possible outputs (3D fluence, 3D absorbed dose, polarimetric images...). The package, together with its user's manual, will soon be made available here for download, however, it is already possible to use it by contacting Günhan Akarçay ( hidayet.akarcay at iap.unibe.ch ).

References:
(1) Akarçay et al., “Determining the optical properties of a gelatin‑TiO2 phantom at 780 nm,” Biomed. Opt. Exp. 3 (2012).
(2) Hiltpold, “Bestimmung optischer Gewebeparameter,” Bachelor thesis (2012).
(3) Akarçay et al., “Monte Carlo modeling of polarized light propagation: Stokes vs Jones–Part I,” Appl. Opt. (2014).
(4) Akarçay et al., “Monte Carlo modeling of polarized light propagation: Stokes vs Jones–Part II,” Appl. Opt. (2014).
ERRATUM in (4): We noticed a small error in the last column (input state |O>) of the ''Primary data'' shown in Figure 1. The images corresponding to < L+ | and < L- | analyzers should be exchanged with the images obtained with < C- | and < C+ | analyzers, respectively. This was just a small bug in the representation of the data and does not affect the other figures/results. (See entirety of figures in the .pdf file linked at the bottom of this page.)

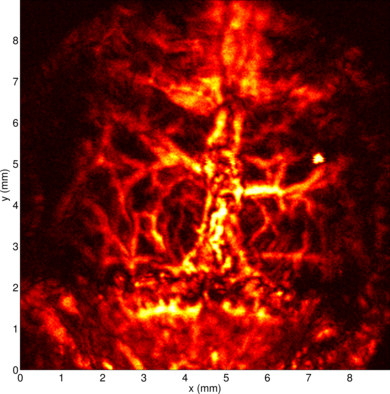

Optoacoustic (OA) Microscopy is a promising non-invasive medical imaging technique that is able to obtain 3D structural information by making use of the optoacoustic effect, i.e. the creation of ultrasonic pressure waves upon absorption of light. Combining this with the fact that the hemoglobin contained in red blood cells is the dominant absorber inside biological tissue, it provides high contrast 3D imaging of the vasculature at a spatial resolution superior to what can be achieved by MRI or micro-CT. Since blood perfusion and -oxygenation are important markers for cancer detection, OA microscopy could prove valuable in this context. Using OA microscopy, our group has studied the brain vasculature of malaria-infected mice (see Figure) and is engaged in the general development of the technique.
